800x600 8-inches LCD Display with resolution
Product Details:
- Warranty Yes
- Type LCD Monitor
- Application Desktop
- Screen Size Other Inch (in)
- Click to View more
X
800x600 8-inches LCD Display with resolution Price And Quantity
- 1000 Unit
800x600 8-inches LCD Display with resolution Product Specifications
- Desktop
- LCD Monitor
- Other Inch (in)
- Yes
800x600 8-inches LCD Display with resolution Trade Information
- Cash in Advance (CID)
- 20000 Unit Per Month
- 7-10 Days
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- All India
Product Description
| Model Number | PPD-1008 | PPD-1110 | PPD-1111 | |
| Color | Black | Black | Black | |

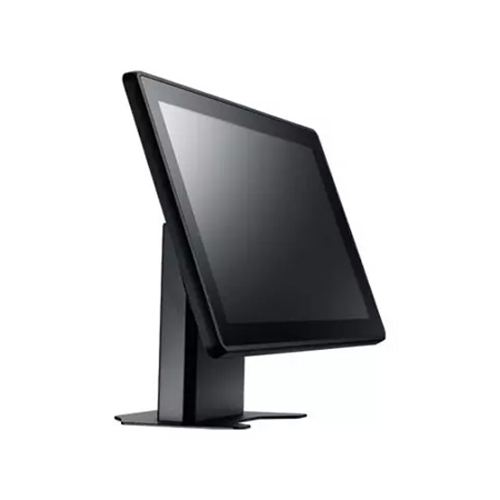

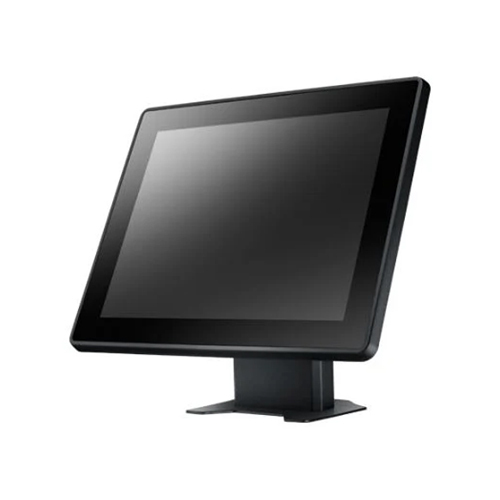

| Display Type | 8" TFT LCD with LED Backlight | 9.7" TFT LCD with LED Backlight | 10.1" TFT LCD with LED Backlight | |
| Aspect Ratio | 4:3 | 4:3 | 16:10 | |
| Resolution | 800x600 | 1024x768 | 1280x800 | |
| Brightness(Typical) | 250nits | 350nits | 400nits | |
| Contrast Ratio (Typical) | 800:1 | 500:1 | 800:1 | |
| Response Time (Typical) | 20msec | 20msec | 29msec | |
| Viewing Angle (Typical) | Horizontal 140; Vertical 130 | Horizontal 140; Vertical 130 | Horizontal 178; Vertical 178 | |
| Front Bezel Style | True-flat PMMA cover lens | True-flat PMMA cover lens | True-flat PMMA cover lens | |
| Projected Capacitive Touch (10 points) | Projected Capacitive Touch (10 points) | Projected Capacitive Touch (10 points) | ||
| I/O Connectivity | D-sub 15pin VGA | D-sub 15pin VGA | D-sub 15pin VGA | |
| N/A | DVI-D | DVI-D | ||
| Audio Line-in | Audio Line-in | Audio Line-in | ||
| +12V DC Wall Mount Power Adapter | +12V DC Wall Mount Power Adapter | +12V DC Wall Mount Power Adapter | ||
| USB type B (for PCAP TP model) | USB type B (for PCAP TP model) | USB type B (for PCAP TP model) | ||
| Power Consumption | 5.3W | 5.2W | 5.4W | |
| Speaker (Optional) | 1x2W | 1x2W | 1x2W | |
| LED Life Time | 30,000hours | 30,000hours | 30,000hours | |
| Temperature | Operation | 0 to +40 | 0 to +40 | 0 to +40 |
| Storage | -10 to +50 | -10 to +50 | -10 to +50 | |
| Humidity | Operation | 20 to 80% | 20 to 80% | 20 to 80% |
| Storage | 10 to 90% | 10 to 90% | 10 to 90% | |
| Dimension (W*H*D) mm | Display Only | 204 x 163 x 30 mm | 245 x 195 x 31 mm | 255 x 174 x 31 mm |
| w/ Pole Stand | 204 x 198 x 130 mm | 245 x 217 x 130 mm | 255 x 208 x 130 mm | |
| w/ L Type Stand | 204 x 190 x 128 mm | 245 x 209 x 128 mm | 255 x 200 x 128 mm | |
| Mounting Option | VESA 75x75mm | VESA 75x75mm | VESA 75x75mm | |
| Regulatory Approval | FCC, CE, LVD, ROHS | FCC, CE, LVD, ROHS | FCC, CE, LVD, ROHS | |
