Fanless High Performance POS System Hardware

Get a Price/Quote

Product Details:

Color As per req.
Power Supply Electric
Product Type Fanless High Performance POS System Hardware
Usage Commercial
Installation Free standing
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Fanless High Performance POS System Hardware Price And Quantity

Minimum Order Quantity 1000 Unit

Fanless High Performance POS System Hardware Product Specifications

Usage Commercial
Installation Free standing
Color As per req.
Power Supply Electric
Product Type Fanless High Performance POS System Hardware

Fanless High Performance POS System Hardware Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 20000 Unit Per Month
Delivery Time 7-10 Days
Main Export Market(s) Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
Main Domestic Market All India

Product Description

Model Name	TP-7715	TP-7715 Plus
Chipset	Intel® H110	Intel® Q170
Processor	6th Generation Sky Lake Intel® Celeron G3900TE (2.3GHz, Dual Core, 2M Cache) Intel® i3-6100TE (2.7GHz, Dual Core, 4M Cache) Intel® i5-6500T (3.3GHz, Quad Core, 4M Cache) Intel® i7-6700TE (3.4GHz, Quad Core, 8M Cache)	6th Generation Sky Lake Intel® i5-6500TE (3.3GHz, Quad Core, 4M Cache) Intel® i7-6700TE (3.4GHz, Quad Core, 8M Cache)
Memory	2 x DDR4 SODIMM, up to 32GB
Storage	1 x 2.5" SATA BAY in Main Panel 1 x 2.5" SATA BAY in Stand (Option)
Storage	N/A	Onboard RAID
LCD Panel	15-inch TFT LCD with LED Backlight
LCD Panel	1024 (W) RGB x 768(H)
Touch Panel	True-Flat Projected Capacitive Multi Touch
Touch Panel	True-Flat 5-wire Resistive Touch
Speaker	1 x 2W High Quality Speaker
I/O Expansion
USB	4 x USB 3.0 Type A Option : 1 x 12V and 1 x 24V Power USB or 2 x USB 2.0
LAN	2 x RJ45 10/100/1000Mbps Giga Ethernet
COM	2 x COM (DB9) and 2 x COM (RJ45), w/ RI/5V/12V
LPT	1 x DB25 Parallel Port
HDMI	1 x HDMI
Audio	1 x Line-out
Cash Drawer	1 x RJ11 port supports 2 cash drawer with 12V or 24V by jumper
DC Power Out	1 x +12V Power Output
DC Power In	1 x Standard Mini-DIN 4PIN type
Power Management
Power Adapter	12V@7.5A 90W Adapter (Hide in Stand) 12V@12.5A 150W Adapter (Option for Power USB)
Mechanical & Environmental
Dust and Water	IP65 on Front Panel
Tilt Adjustment	15° ~ 85 °
Dimension	356 (W) x 318 (H) x 207 (D) mm
Weight	9 kg
Certification	CE/FCC/LVD/BSMI
Operation System	POS Ready 7 / Windows Embedded 8.1 Industry / Windows 10 IoT / Linux (Ubuntu)
Intel® AMT Support	N/A	Yes
Operation Condition	0°C to +40°C / 20 to 80% without condensation (Equipped with HDD)
Storage Condition	-20°C to +55°C / 20 to 85% without condensation
Optional Accessories
2nd Display	9.7" (1024 x 768) LCD Display, Option : PCAP Touch Panel
Customer Display	VFD, 20 Columns x 2 Lines
MSR	Bi-directional, Comply with ISO 7811 and Three Track support
i-Button	Dallas i-button Reader
Barcode Scanner	2D CMOS Barcode Scanner
Wi-Fi	Wi-Fi IEEE 802.11 a/b/g/n/ac
VESA MOUNT Kit	VESA-Compatible, 75 x 75 (mm)

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'POS System' category

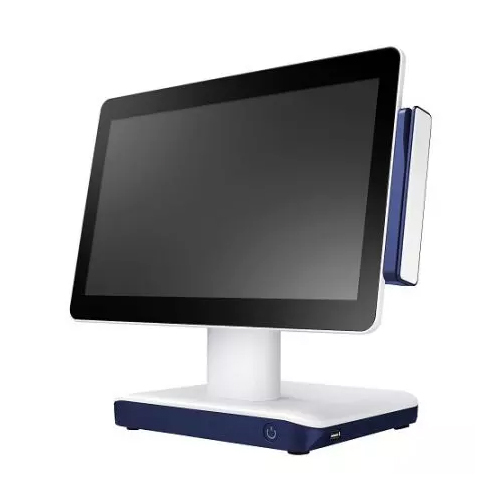

15.6-inches Touch Screen Fanless POS System Hardware Minimum Order Quantity : 1000 Power Supply : Electric Product Type : 15.6inches Touch Screen Fanless POS System Hardware Color : As per req. Usage : Commercial Installation : Free standing Screen Size : 15.6 Inch (in)

Send Inquiry

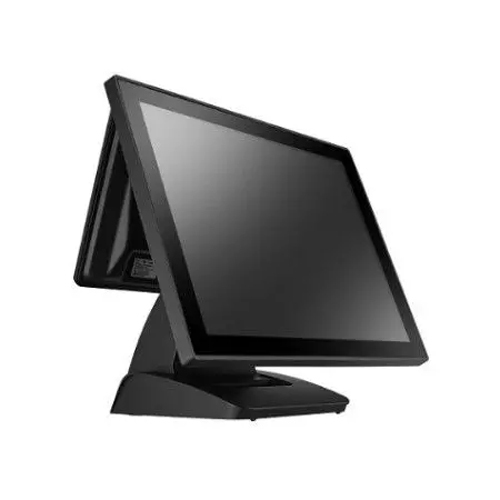

15-inches Full Flat Fanless POS System Hardware Minimum Order Quantity : 1000 Power Supply : Electric Product Type : 15inches Full Flat Fanless POS System Hardware Color : As per req. Usage : Commercial Installation : Free standing Screen Size : 15 Inch (in)
